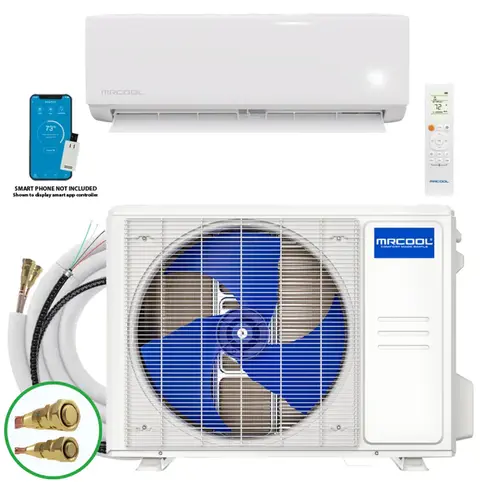

MRCOOL DIY® Select 9,000 BTU Single Zone Mini Split System 115V
SKU DIYS-09-HP-115A11-O
Original price

$1,599.00

Sale price
$1,249.00

Save Now

Professional climate control shouldn't come with a professional installation bill. The MRCOOL DIY Select 9,000 BTU Single Zone Mini-Split Heat Pump delivers year-round comfort to spaces up to 400 square feet, backed by inverter-driven efficiency, whisper-quiet operation, and the only pre-charged Quick Connect line set in its class. No vacuum pumps. No licensed contractors. No compromise. Four steps is all it takes: mount, connect, power on, and enjoy the kind of reliable, app-controlled comfort that used to cost twice as much to install.

  • System Capacity: 9,000 BTU heating and cooling output covers spaces up to 400 sq. ft., with a SEER2 rating of 17.5 and HSPF2-4 of 8.8 for year-round efficiency that keeps operating costs low.
  • DIY Quick Connect Line Set (11.5 ft): Factory pre-charged with R-454B refrigerant and sealed Quick Connect fittings, this included 11.5 ft line set eliminates the need for vacuum pumps, gauges, or refrigerant handling, making true homeowner installation possible from day one. Additional lengths (16 ft, 25 ft, 35 ft, and 50 ft) are available separately.
  • Inverter Technology: Variable-speed compressor operation continuously adjusts output to match your space's exact demand, reducing energy use and maintaining consistent temperatures without the on/off cycling of conventional systems.
  • Ultra-Quiet Performance: Indoor noise levels as low as 18 dB(A) in Sleep mode make this unit ideal for bedrooms, home offices, and any space where silence matters.
  • Smart Control via MRCOOL Comfort App: Adjust temperature, switch modes, build schedules, and monitor system performance from anywhere using the MRCOOL Comfort App, with added voice control through Amazon Alexa and Google Assistant.
  • Future-Ready Refrigerant: Charged with R-454B, a next-generation low-GWP refrigerant that meets emerging environmental standards and positions your system for long-term regulatory compliance.
  • Warranty and Care Program Coverage: Backed by a 2-year compressor warranty, a 1-year parts warranty.

Technical Specifications

Capacity & Performance
Zone Capacity 1
Cooling Capacity 9,000 BTU
EER2 9.8
SEER2 17.5
Outdoor Operating Temperature (Cooling) -13 to 122℉
Heating Capacity 9,000 BTU
HSPF2-4 8.8
HSPF2-5 6.8
Outdoor Operating Temperature (Heating) -13 to 75℉
Coverage Area Up to 400 sq ft.
Outdoor Noise Level 54 dB(A)
Indoor Noise Level (Turbo/Hi/Med/Low/Sl) 43 / 35 / 31 / 22 / 18 dB(A)
Dimensions & Weight

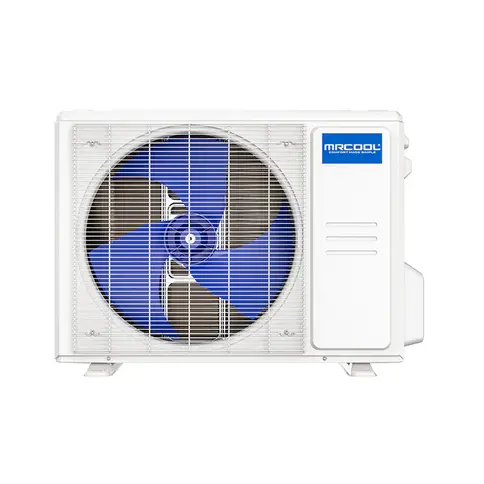

Condenser Dimensions 28.35 W" x 10.63 D" x 19.49 H"
Air Handler Dimensions 28.7 W" x 7.87 D" x 11.50 H"
Condenser Weight 54.67 lbs
Air Handler Weight 23.81 lbs
Electrical Requirements
Voltage 115V
Phase 1
Cycle 60 Hz
Min Circuit Ampacity 17A
Max Fuse Breaker 20A
Refrigerant & Piping
Line Set Length 11.5 ft.
Refrigerant Type R-454B
Refrigerant Volume 17.28 oz
Liquid Line Size 1/4"
Suction Line Size 3/8"
Max Line Set Length 75 ft.
Features
Inverter Technology Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes
